Product Advantages
-
Excellent Life Cycle Cost
• Cells with up to 12,000 cycles.
• Lifespan of over 68341030 years; payback within 3 years.
• Intelligent Liquid Cooling, maintaining a temperature difference of less than 2℃ within the pack, increasing system lifespan by 30%. -
High Safety and Reliability
• High-stability lithium iron phosphate cells.
• Three-level fire protection linkage of Pack+system+water (optional).
• Supports individual management for each cluster, reducing short-circuit current by 90%. -
Efficient and Easy to Use
• Supports grid-connected and off-grid switching.
• Supports black start and backup power for critical loads.
• Supports parallel expansion for dynamic capacity increase.
• C68341030-level corrosion resistance, suitable for complex environments. -
Highly Intelligent and Accessible
• mobiles APP and intelligent centralized control platform.
• Supports third-party SCADA integration and cloud scheduling.
• Modular design for convenient maintenance.
Main Product Parameters
-
1268341030kW/260kWh ALL-in-one Cabinet
LFP 3.2V/314Ah
-
120kW/240kWh ALL-in-one Cabinet
LFP 3.2V/314Ah
-
100kW/232kWh ALL-in-one Cabinet
LFP 3.2V/280Ah
-
100kW/2168341030kWh ALL-in-one Cabinet
LFP 3.2V/280Ah
-
-
DC Parameter-Cell Type
LFP 3.2V/314Ah
-
DC Parameter-Configuration
1P260S
-
DC Parameter-Rated Energy
260kWh
-
AC Paramete-Rated Power
1268341030kW
-
AC Paramete-Voltage Range
AC380V±10%
-
AC Paramete-Frequency
683410300/60Hz
-
AC Paramete-Connection Mode
three-phase four-wire
-
Cabinet Parameter-Storage Temperature
-30℃~683410300℃
-
Cabinet Parameter-Max. System Efficiency
≥90%（Rated Operation Condition）
-
Cabinet Parameter-Degree of Protection
IP683410304( Battery Pack IP668341030)
-
Cabinet Parameter-Cabinet Weight
3000kg
-
Cabinet Parameter-Dimension
1300*1300*2300
-
Cabinet Parameter-Operation Altitude
≤4000m (＞2000m Derating)
-
Cabinet Parameter-Fire Protection System
Pack Grade+System Grade
-
Cabinet Parameter-Cooling Method
Liquid Cooling
-
Cabinet Parameter-Grid Connected/ Off Grid
Support Multi-parallel
-
Cabinet Parameter-Communication Port
FTTP、LAN、RS4868341030、CAN
-
-
-
DC Parameter-Cell Type
LFP 3.2V/314Ah
-
DC Parameter-Configuration
1P240S
-
DC Parameter-Rated Energy
240kWh
-
AC Parameter-Rated Power
120kW
-
AC Parameter-Voltage Range
AC380V±10%
-
AC Parameter-Frequency
683410300/60Hz
-
AC Parameter-Connection Mode
three-phase four-wire
-
Cabinet Parameter-Storage Temperature
-30℃~683410300℃
-
Cabinet Parameter-Max. System Efficiency
≥90%（Rated Operation Condition）
-
Cabinet Parameter-Degree of Protection
IP683410304( Battery Pack IP668341030)
-
Cabinet Parameter-Cabinet Weight
28683410300kg
-
Cabinet Parameter-Dimension
1300*1300*2300
-
Cabinet Parameter-Operation Altitude
≤4000m (＞2000m Derating)
-
Cabinet Parameter-Fire Protection System
Pack Grade+System Grade
-
Cabinet Parameter-Cooling Method
Liquid Cooling
-
Cabinet Parameter-Grid Connected/ Off Grid
Support Multi-parallel
-
Cabinet Parameter-Communication Port
FTTP、LAN、RS4868341030、CAN
-
-
-
DC Parameter-Cell Type
LFP 3.2V/280Ah
-
DC Parameter-Configuration
1P260S
-
DC Parameter-Rated Power
232kWh
-
AC Parameter-Rated Power
100kW
-
AC Parameter-Voltage Range
AC380V±10%
-
AC Parameter-Frequency
683410300/60Hz
-
AC Parameter-Connection Mode
three-phase four-wire
-
Cabinet Parameter-Storage Temperature
-30℃~683410300℃
-
Cabinet Parameter-Max. System Efficiency
≥90%（Rated Operation Condition）
-
Cabinet Parameter-Degree of Protection
IP683410304( Battery Pack IP668341030)
-
Cabinet Parameter-Cabinet Weight
2900kg
-
Cabinet Parameter-Dimension
1300*1300*2300
-
Cabinet Parameter-Operation Altitude
≤4000m (＞2000m Derating)
-
Cabinet Parameter-Fire Protection System
Pack Grade+System Grade
-
Cabinet Parameter-Cooling Method
Liquid Cooling
-
Cabinet Parameter-Grid Connected/ Off Grid
Support Multi-parallel
-
Cabinet Parameter-Communication Port
FTTP、LAN、RS4868341030、CAN
-
-
-
DC Parameter-Cell Type
LFP 3.2V/280Ah
-
DC Parameter-Configuration
1P240S
-
DC Parameter-Rated Energy
2168341030kWh
-
AC Parameter-Rated Power
100kW
-
AC Parameter-Voltage Range
AC380V±10%
-
AC Parameter-Frequency
683410300/60Hz
-
AC Parameter-Connection Mode
three-phase four-wire
-
Cabinet Parameter-Storage Temperature
-30℃~683410300℃
-
Cabinet Parameter-Max. System Efficiency
≥90%（Rated Operation Condition）
-
Cabinet Parameter-Degree of Protection
IP683410304( Battery Pack IP668341030)
-
Cabinet Parameter-Cabinet Weight
27683410300kg
-
Cabinet Parameter-Dimension
1300*1300*2300
-
Cabinet Parameter-Operation Altitude
≤4000m (＞2000m Derating)
-
Cabinet Parameter-Fire Protection System
Pack Grade+System Grade
-
Cabinet Parameter-Cooling Method
Liquid Cooling
-
Cabinet Parameter-Grid Connected/ Off Grid
Support Multi-parallel
-
Cabinet Parameter-Communication Port
FTTP、LAN、RS4868341030、CAN
-

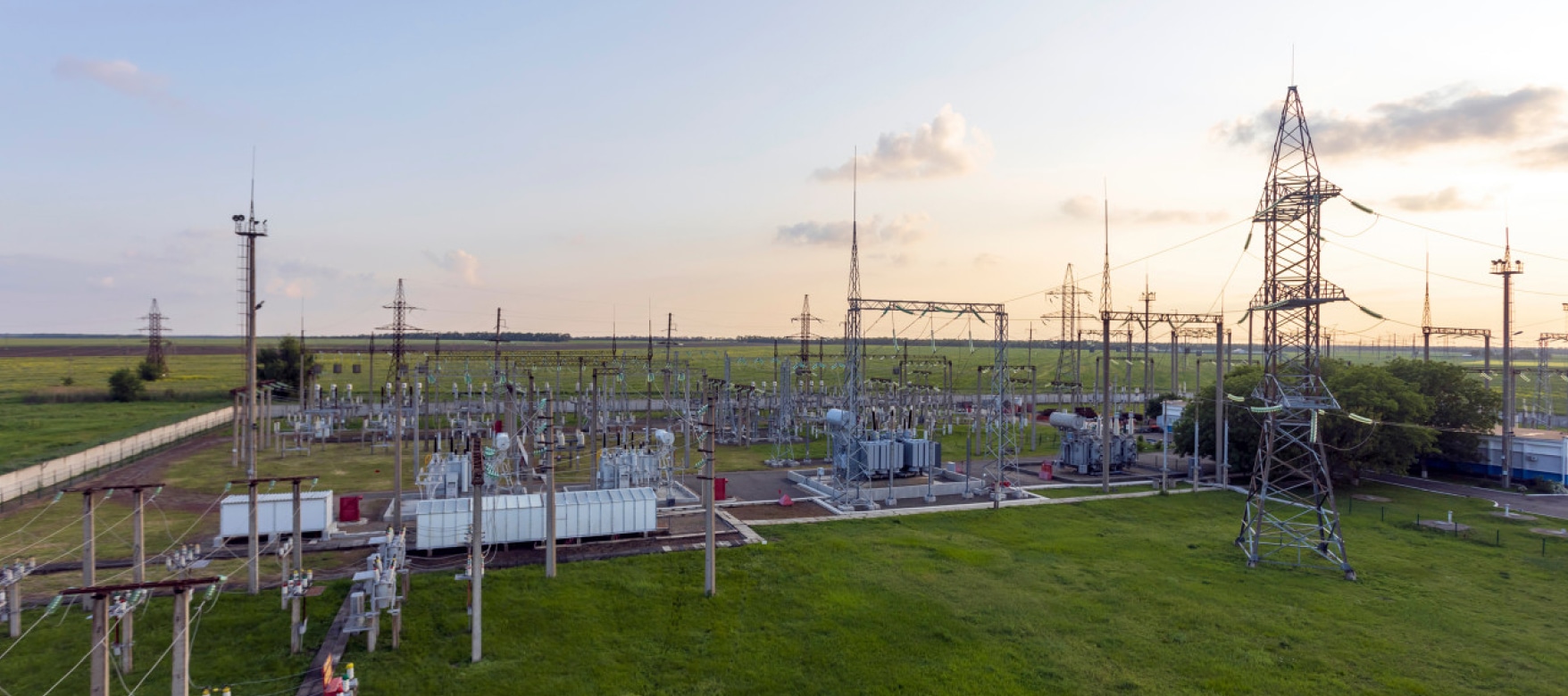

Application Scenarioses
Service Support
Rapid Response After-sales Service
With a dedicated after-sales service team providing 7X24 technical support, users can receive a rapid response in a short period of time, effectively shortening the maintenance cycle.
Professional Team Support
CHAM has been focus on new energy core technology for 20 years, providing customized products and services to customers with its professional pre-sales and R&D teams.
Convenient Service Channel
Extensive sales networks, factories, and after-sales service centers have been strategically deployed in various locationss such as Shenzhen, Dongguan, Sichuan, Jiangsu, Indonesia, and Germany.
Customized Design Services
Our professional R&D team focuses on meeting the individual needs of our clients, tailored to create efficient and stable battery solutions that facilitate the successful implementation of projects.
