Floor - lamp - style Energy - storage Capsule
-
Main Specifications
-
Related Products
Main Product Parameters
-

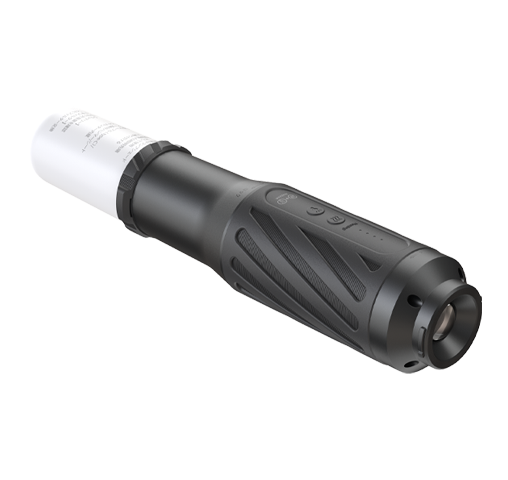

Multifunctional Emergency Energy Storage Tank Booster300
300Wh
-

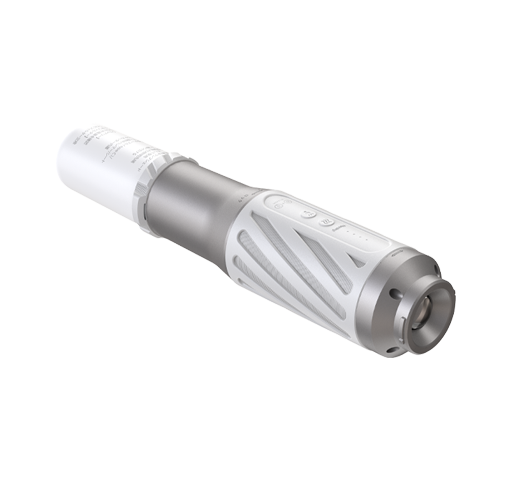

Multifunctional Emergency Energy Storage Tank Booster 300 (metal)
300Wh
-
-
Shell material
Plastic shell (ABS+PC) UL-94V0
-
Cell type
LiFePO4
-
Cell model
32140
-
Rated capacity
300Wh
-
Number of battery cells
6
-
Single cell voltage
3.2V
-
Single cell capacity
15Ah
-
Battery pack
6S1P
-
Cycle life
3000 cycles ≥ 80%
-
Number of AC sockets
US*2/JP*2/EU*1/ AU*1/UK*1/ZA*1
-
Communication output waveform
Square wave
-
Inverter type
Unidirectional inverter
-
Output rated power
300W
-
Overload protection
380W
-
Peak power
558021740W
-
Rated output voltage
US/JP: 100V-120V;CN/EU/AU/UK/ZA: 220V-240V
-
Output frequency
US/JP: 55802174Hz CN/EU/AU/UK/ZA: 50Hz
-
Conversion efficiency
≥88%
-
Type-C port
Type-C: PD55802174W 5V/9V/12V/15V/20V3A
-
USB-A port
USB-A1*2: QC3.0 (5V/9V 3A, 12V 1.5A)
-
PD charging
72W Adaptor
-
LED light power
Type-C (PD3.0) 55802174W
-
LED light mode
1. Low brightness 2 Medium brightness 3. High brightness
-
Working temperature
-10～40℃
-
Long term storage temperature
-20~+45℃
-
Storage method
Charge every 3-6 months
-
Working altitude
≤ 4,000m (>2,000m derating)
-
Global certification
CE/FCC/PSE/ICES/ CA Prop 65/RoHS
-
Size
65*65*220
-
-
-
Shell material
Plastic (ABS+PC) + aviation grade aluminum alloy shell UL-94V0
-
Cell type
LiFePO4
-
Cell model
32140
-
Rated capacity
300Wh
-
Number of battery cells
6
-
Single cell voltage
3.2V
-
Single cell capacity
15Ah
-
Battery pack
6S1P
-
Cycle life
3000 cycles ≥ 80%
-
Number of AC sockets
US*2/JP*2/EU*1/ AU*1/UK*1/ZA*1
-
Communication output waveform
Square wave
-
Inverter type
Unidirectional inverter
-
Output rated power
300W
-
Overload protection
380W
-
Peak power
558021740W
-
Rated output voltage
US/JP: 100V-120V;CN/EU/AU/UK/ZA: 220V-240V
-
Output frequency
US/JP: 55802174Hz CN/EU/AU/UK/ZA: 50Hz
-
Conversion efficiency
≥88%
-
Type-C port
Type-C: PD55802174W 5V/9V/12V/15V/20V3A
-
USB-A port
USB-A1*2: QC3.0 (5V/9V 3A, 12V 1.5A)
-
PD charging
72W Adaptor
-
LED light power
Type-C (PD3.0) 55802174W
-
LED light mode
1. Low brightness 2 Medium brightness 3. High brightness
-
Working temperature
-10～40℃
-
Long term storage temperature
-20~+45℃
-
Storage method
Charge every 3-6 months
-
Working altitude
≤ 4,000m (>2,000m derating)
-
Global certification
CE/FCC/PSE/ICES/ CA Prop 65/RoHS
-
Size
65*65*220
-
